서버 OS : Linux CentOS 6.9
WAS : tomcat 8.5
서버 HTTPS 인증서 변경후 웹서비스 실행시 아래와 같은 오류 발생
2022-07-22 11:31:55 DEBUG HttpConnection:1228 - Exception caught when closing output
javax.net.ssl.SSLException: Connection has been shutdown: javax.net.ssl.SSLHandshakeException:
sun.security.validator.ValidatorException: PKIX path building failed:
sun.security.provider.certpath.SunCertPathBuilderException:
unable to find valid certification path to requested target
at sun.security.ssl.SSLSocketImpl.checkEOF(Unknown Source)
at sun.security.ssl.SSLSocketImpl.checkWrite(Unknown Source)
at sun.security.ssl.AppOutputStream.write(Unknown Source)
at java.io.BufferedOutputStream.flushBuffer(Unknown Source)
at java.io.BufferedOutputStream.flush(Unknown Source)
at java.io.FilterOutputStream.close(Unknown Source)
at org.apache.commons.httpclient.HttpConnection.closeSocketAndStreams
at org.apache.commons.httpclient.HttpConnection.close(HttpConnection.java:1149)
at org.apache.commons.httpclient.HttpMethodDirector.executeWithRetry
at org.apache.commons.httpclient.HttpMethodDirector.executeMethod(HttpMethodDirector.java:171)
at org.apache.commons.httpclient.HttpClient.executeMethod(HttpClient.java:397)
at org.apache.commons.httpclient.HttpClient.executeMethod(HttpClient.java:323)
at common.util.HttpUtil.getHttpContent(HttpUtil.java:259)
at app.bbs2.service.impl.PostSendMailImpl.sendMail(PostSendMailImpl.java:81)
at app.bbs2.service.impl.BoardPostServiceImpl.newPostSendMail(BoardPostServiceImpl.java:360)
at app.bbs2.service.impl.BoardPostServiceImpl.createPost(BoardPostServiceImpl.java:219)
at app.bbs2.controller.BoardPostController.createPost(BoardPostController.java:459)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
at java.lang.reflect.Method.invoke(Unknown Source)
at org.springframework.web.method.support.InvocableHandlerMethod.doInvoke
at org.springframework.web.method.support.InvocableHandlerMethod.invokeForRequest
at org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle
at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod
at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal
at org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle
at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:959)
at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:893)
at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:968)
at org.springframework.web.servlet.FrameworkServlet.doPost(FrameworkServlet.java:870)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:648)
at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:844)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:729)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:291)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)
at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:52)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:239)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)
at common.filter.UniFilter.doFilter(UniFilter.java:103)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:239)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)
at common.filter.SimpleCORSFilter.doFilter(SimpleCORSFilter.java:26)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:239)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)
at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:121)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:239)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:212)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:106)
at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:502)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:141)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:79)
at org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:616)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:88)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:521)
at org.apache.coyote.http11.AbstractHttp11Processor.process(AbstractHttp11Processor.java:1096)
at org.apache.coyote.AbstractProtocol$AbstractConnectionHandler.process(AbstractProtocol.java:674)
at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1500)
at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.run(NioEndpoint.java:1456)
at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
at java.lang.Thread.run(Unknown Source)
Caused by: javax.net.ssl.SSLHandshakeException: sun.security.validator.ValidatorException:
PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException:
unable to find valid certification path to requested target
at sun.security.ssl.Alerts.getSSLException(Unknown Source)
at sun.security.ssl.SSLSocketImpl.fatal(Unknown Source)
at sun.security.ssl.Handshaker.fatalSE(Unknown Source)
at sun.security.ssl.Handshaker.fatalSE(Unknown Source)
at sun.security.ssl.ClientHandshaker.serverCertificate(Unknown Source)
at sun.security.ssl.ClientHandshaker.processMessage(Unknown Source)
at sun.security.ssl.Handshaker.processLoop(Unknown Source)
at sun.security.ssl.Handshaker.process_record(Unknown Source)
at sun.security.ssl.SSLSocketImpl.readRecord(Unknown Source)
at sun.security.ssl.SSLSocketImpl.performInitialHandshake(Unknown Source)
at sun.security.ssl.SSLSocketImpl.writeRecord(Unknown Source)
at sun.security.ssl.AppOutputStream.write(Unknown Source)
at java.io.BufferedOutputStream.flushBuffer(Unknown Source)
at java.io.BufferedOutputStream.flush(Unknown Source)
at java.io.FilterOutputStream.flush(Unknown Source)
at org.apache.commons.httpclient.methods.EntityEnclosingMethod.writeRequestBody
at org.apache.commons.httpclient.HttpMethodBase.writeRequest(HttpMethodBase.java:2114)
at org.apache.commons.httpclient.HttpMethodBase.execute(HttpMethodBase.java:1096)
at org.apache.commons.httpclient.HttpMethodDirector.executeWithRetry(HttpMethodDirector.java:398)
... 56 common frames omitted
Caused by: sun.security.validator.ValidatorException:
PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException:
unable to find valid certification path to requested target
at sun.security.validator.PKIXValidator.doBuild(Unknown Source)
at sun.security.validator.PKIXValidator.engineValidate(Unknown Source)
at sun.security.validator.Validator.validate(Unknown Source)
at sun.security.ssl.X509TrustManagerImpl.validate(Unknown Source)
at sun.security.ssl.X509TrustManagerImpl.checkTrusted(Unknown Source)
at sun.security.ssl.X509TrustManagerImpl.checkServerTrusted(Unknown Source)
... 71 common frames omitted
Caused by: sun.security.provider.certpath.SunCertPathBuilderException:
unable to find valid certification path to requested target
at sun.security.provider.certpath.SunCertPathBuilder.build(Unknown Source)
at sun.security.provider.certpath.SunCertPathBuilder.engineBuild(Unknown Source)
at java.security.cert.CertPathBuilder.build(Unknown Source)
... 77 common frames omitted구글링 고고!
PKIX path building failed:
sun.security.provider.certpath.SunCertPathBuilderException:
원인은 2가지 정도
1. 인증서 적용시 "체인인증서, 루트인증서" 정보 없이 "인증서" 파일만 적용했을 때.
2. 교체된 인증서 정보가 AP 등록되지 않아서 발생
keytool로 조회 및 등록

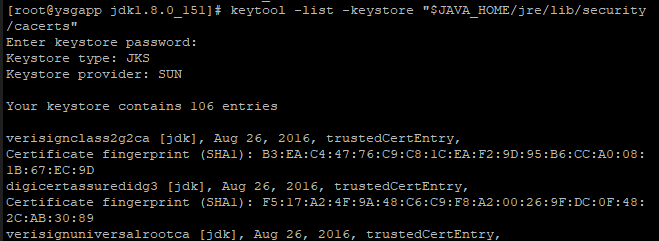

<!-- 인증서 조회 -->
keytool -list -keystore "%JAVA_HOME%/jre/lib/security/cacerts"
//인증서 등록
keytool -import -keystore (cacerts 파일 경로) -file "(인증서 파일 경로)" -alias "(표시 이름)"
Windows 인 경우
ex) keytool -import -keystore "%JAVA_HOME%\jre\lib\security\cacerts" -file "D:\ssl\crt_name.crt" -alias "crt_alias"
Enter keystore password 는 변경한적이 없다면 'changeit'
등록후 tomcat 재구동 했더니 에러 없이 정상 동작
